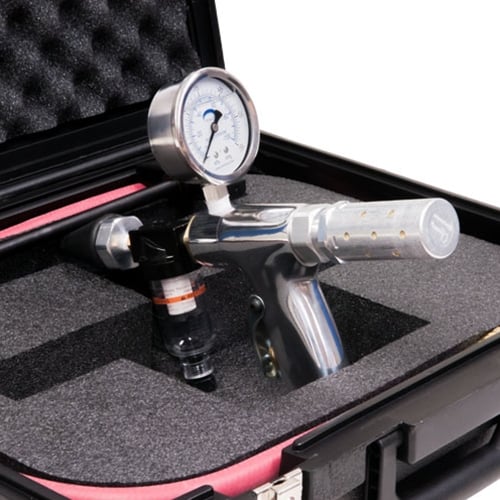

Vacuum Leak Detector Kit

In-stock SKU: 98360000

TC Wilson’s Vacuum Leak Detector (VLD) is a simple test instrument used to identify leaky tubes, ranging in sizes from 1/4″ to 3″ outer diameter. Suitable for manufacturers and users of condensers, heat exchangers and other tubular apparatus, the Vacuum Leak Detector is used to accurately pinpoint costly leaks the first time, every time.

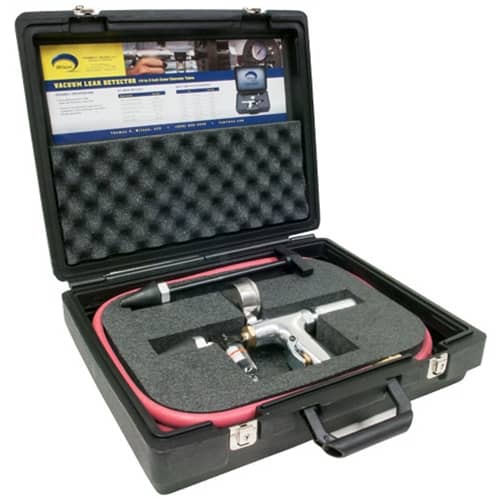

The VLD Kit contains everything needed for one person to safely test and identify leaky tubes, reducing labor and maintenance costs.

  • Vacuum Leak Detector (Part No. 42823)
  • Fully Assembled with Nozzle (Part No. 41460-1003)
  • Hose Assembly 12-Foot (Part No. 24360-0012)
  • T-Handle Tube Plug (Part No. 42834-1003)
  • Carrying Case (Part No. 42837)

Lightweight and quiet, the TC Wilson Vacuum Leak Detector makes it easy for one person to test a tube in just 6-8 seconds.  Order your VLD today.

Log in to See Your Price
Same day shipping available
Need a custom order?
Add this product
to your list to request your quote.

The TC Wilson Vacuum Leak Detector (VLD) is a simple test instrument used by manufacturers and users of condensers, heat exchangers and other tubular apparatus to identify leaky tubes.

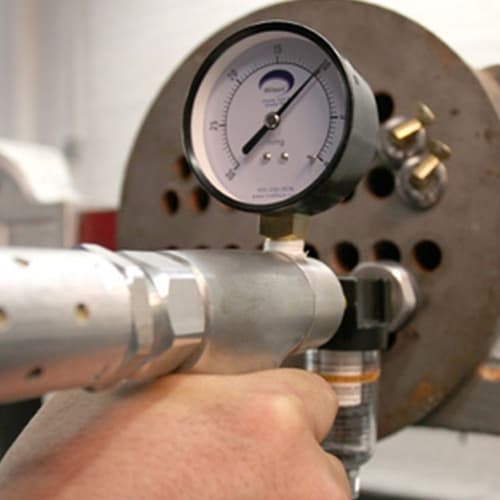

HOW TO USE THE VLD

  • One man does the job.
  • He seals the far end of each tube with a snap type tube plug, then he presses the rubber coated nozzle into the near end of the tube and depresses the trigger.
  • Compressed air flows through a Venturi chamber to produce a vacuum in the tested tube.
  • When this vacuum reaches a satisfactory level, he releases the trigger.
  • A steady Gauge reading indicates a good tube.
  • A falling vacuum indicates a leaky tube.

Using a 90 PSI dry clean air, a typical tube (based on 1″ OD x 20 Gauge and 20′ L tube) can be tested in 6 to 8 seconds. Tool weighs 2.25 lbs. and is equipped with a muffler, so it operates quietly even in confined areas.
