Air-Driven Fire Tube Boiler Cleaner (FT Series)

SKU: N/A

Wilson’s FT Series Tube Cleaning System cleans pipes or straight tubes in fire tube boilers and other pressure vessels and works well for removing powdery and gummy to soft scale deposits. Each kit comes with a powerful air motor for speedy cleaning and all the accessories required for thorough tube cleaning.

Log in to see prices

  • Cleaning Pipes or Straight Tubes in Fire Tube Boilers and Other Pressure Vessels
  • 2 to 4 1/2-Inch (50.8 to 114.3mm) Outer Diameter Tubes
  • Removing Powdery and Gummy to Soft Scale
  • Speed – Up to 6,000 rpm
  • Air – 80 to 125 CFM
  • Motor – Positive starting, non-stalling, six-blade rotor and double-chambered power seal cylinder

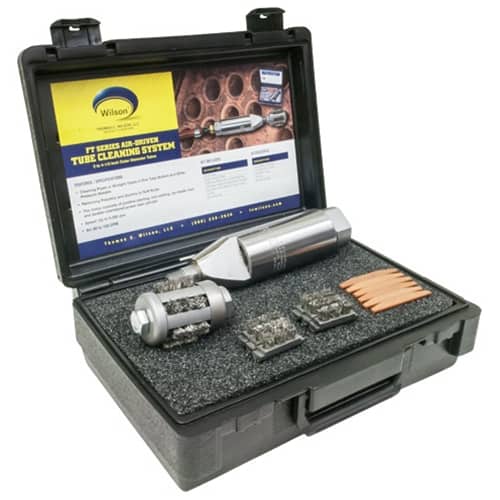

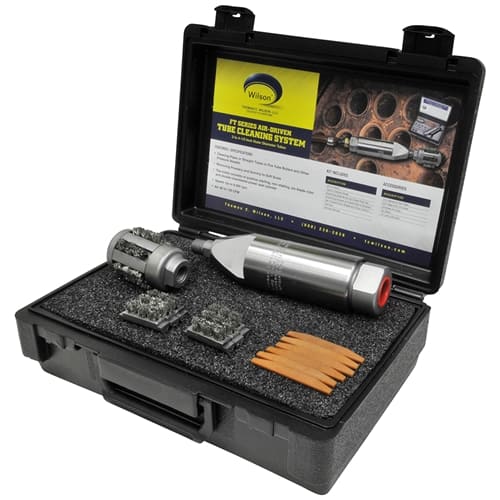

  • Each kit includes air motor and all accessories required for thorough tube cleaning.
  • Powerful air motor speeds cleaning.
  • One man operation improves productivity.
  • Expanding brush removes dry and scaly residue.
  • Expanding scraper cuts through soft or gummy deposits.
  • Optional Model CHJ Cutter Head cleans out heavy deposits.
  • EP Air Motor
  • Expanding Steel Brush and Spare Refill Set
  • -or-
  • Expanding Scraper and Spare Set of Scrapers
  • Set of Spare Rotor Blades and Rotor Wrench
  • Tool Box

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete
Kit*
Air
Motor
Expanding
Steel Brush
Expanding ScraperMotor Diam.CFM
Inches(mm)Inches(mm)
1.750 – 2.124(44.5 – 53.9)FT-1752000-
0156
2492-
0006
26351 9/16(39.7)47
2.125 – 2.624(54.0 – 66.6)FT-2122012-02003442-
0001
7986-
2416
2(50.8)70
2.625 – 3.124(66.7 – 79.3)FT-2627968-02563456-00017990-23542 9/16(65.1)73
3.125 – 3.624(79.4 – 92.0)FT-3122058-03003471-
0002
7992-30803(76.2)108
3.625 – 4.125(92.1 – 104.8)FT-3622058-03503471-
0007
7994-30813 1/2(88.9)

* Complete kit consists of air motor and expanding steel brush or expanding scraper.
