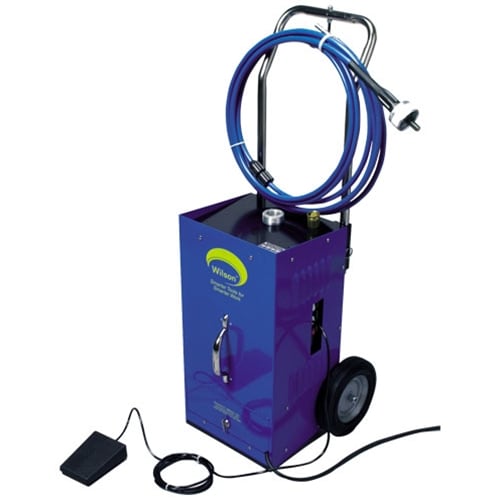

Wils-Away™ 1000 Electric Tube Cleaner

SKU: waw-1000-1

The Wils-Away 1000 Electric Tube Cleaning System cleans straight and curved tubes in heat exchangers, condensers, chillers, absorbers, water heaters, coolers, and other small diameter pressure vessels. WAW-1000 Series drive units are equipped with a safety shaft coupling that snaps under accidental overload, protecting the shaft from breakage. Each kit features a spare coupling and removal tool. One kit cleans varying tube sizes — you only need to replace the brush size and shaft’s casing assembly.

Log in to see prices

  • Cleaning Straight and Curved Tubes in Heat Exchangers, Condensers, Chillers, Absorbers, Water Heaters, Coolers, and Other Small Diameter Pressure Vessels
  • 3/8 1 1/2-Inch (9.5 to 38.1mm) Outer Diameter Tubes
  • Removing Light to Medium Soft Deposits
  • UL and CE certified
  • Twin foot pedal (for remote forward/reverse control) is an optional accessory
  • Dolly-Mounted Drive Unit: – 55 lbs.; 12H x 23W x 11 1/2D (25Kg; 305 x 584 x 292mm)
  • Speed: – 1,725 rpm
  • Power: – 1 HP (WAW-1000 Series)
  • Electric Drive Unit
  • Foot Pedal-Single Direction
  • 25-Foot Shaft & Casing (7.6M)
  • 6 Nylon Brushes
  • -or-
  • Expanding Bronze Brush and Spare Refill Set

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete KitDrive UnitFlexible Shaft & Casing6 Nylon Spiral1BrushesExpanding2Bronze Brush
Inches(mm)
.281 – .311(7.1 – 7.9)WAW-500
(Dolly-Mounted)		96009720-0015
(8 x 32 Female Thread)		61746-
4025		–
.312 – .342(7.9 – 8.7)61746-
4028		–
.343 – .374(8.7 – 9.5)61746-
4031		–
.375 – .405(9.5 – 10.3)61746-
4034		–
.406 – .436(10.3 – 11.1)62501-
4037		–
.437 – .499(11.1 – 12.7)9722-0025
(1/4 x 28 FemaleThread)		62501-
4043		–
.500 – .561(12.7 – 14.2)62501-
4050		–
.562 – .624(14.2 – 15.8)62501-
4056		9900-
3003
.625 – .686(15.9 – 17.4)9724-0025
(1/4 x 28 Female Thread)		62501-
4062		9900-3006
.687 – .749(17.4 – 19.0)62501-
4068		2456-3002
.750 – .811(19.0 – 20.6)62501-
4075		2456-
3003
.812 – .874(20.6 – 22.2)62501-
4081		2456-3004
.875 – .936(22.2 – 23.8)62501-
4087		2456-3006
.937 – .999(23.8 – 25.4)62501-
4093		2463-3004
1.000 – 1.061(25.4 – 26.9)62501-
4100		2463-3005
1.062 – 1.124(26.9 – 28.5)WAW-1000
115V 50/60 Hz		9728-0025
(9/16 x 12 Male Thread)		–2463-3007
1.125 – 1.186(28.5 – 30.1)9610–2463-3008
1.187 – 1.249(30.1 – 31.4)–2470-3002

For other than 115V 50/60Hz units, order WAW-510 (220V 50/60Hz), WAW-530 (115V 50Hz), WAW-540 (220V 60Hz),
WAW-550 (220V 50Hz), or WAW-1100 (220V 50/60Hz).
1. For steel spiral brushes, change the last four digits of the Part No. to “0XXX”, for stainless steel “2XXX”, for brass “3XXX”.
2. For expanding brush with nylon bristles, change the last four digits to “4XXX”, for stainless steel “5XXX”, for steel “0XXX”.
3. These expanding brushes require an adapter (Part No. 9589).
4. These expanding brushes require an adapter (Part No. 9798).
