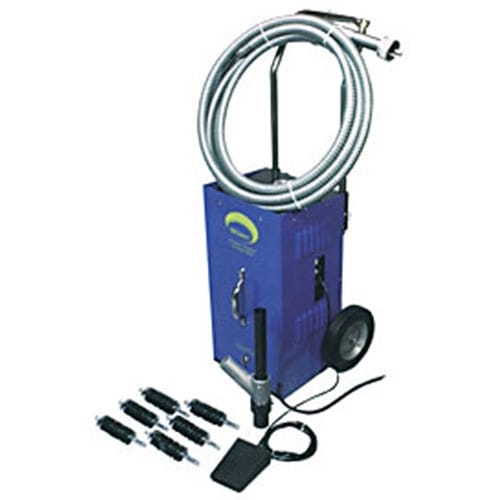

Wils-Away™ 1600 Electric Tube Cleaner

SKU: waw-1600-2

The Wils-Away™ WAW-1500 and WAW-2500 Electric Tube Cleaning Systems are designed for cleaning straight tubes in fire tube boilers, air heaters and other pressure vessels with a 1-1/2 to 4-1/2-inch Outer Diameter. They are ideal for removing soot and scale. Each kit includes an electric drive unit and all accessories and tools required for thorough tube cleaning. The high speed rotation (1725 rpm) of the expanding heavy-duty brush shaft and casing, along with TC Wilson’s excellent selection of vacuums makes the WAW-1500 (1 HP) or WAW-2500 (2 HP) an ideal selection for cleaning soot and scale.

Log in to see prices

  • Cleaning Straight Tubes in Fire Tube Boilers, Air Heaters, and other Pressure Vessels
  • 1 1/2 4 1/2-Inch (38.1 to 114.3 mm) Outer Diameter Tubes
  • Removing Soot and Scale
  • 1 HP Drive Unit – 62 lbs. (28kg)
  • 2 HP Drive Unit – 72 lbs. (32kg)
  • Dimensions: – 12″ H x 23″ W x 11 1/2″ D (305 x 584 x 292mm)
  • Speed – 1,725 rpm
  • Power – 1 HP (WAW-1500-1600) 2 HP (WAW-2500-2600)
  • Current: – 115 Volt 50/60Hz (WAW-1500) 220 Volt 50/60Hz (WAW-1600) 220 Volt 60Hz (WAW-2500) 220 Volt 50Hz (WAW-2600)
  • Each kit includes electric drive unit and all accessories and tools required for thorough tube cleaning.
  • Spiral steel brush removes soot in one pass.
  • Expanding brush cuts through scale.

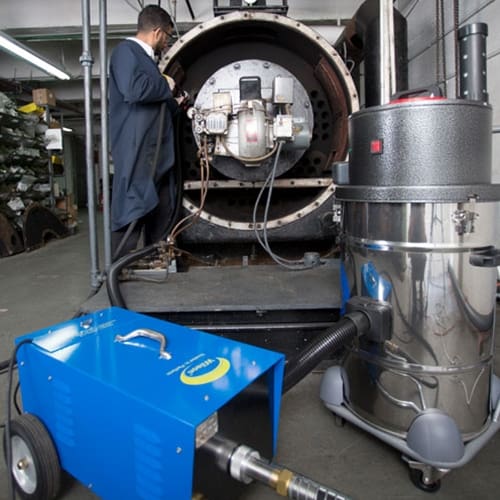

  • Optional vacuum unit collects soot, keeping work area clean.
  • Optional twin foot pedal enables forward/reverse drive.
  • 1 Drive Unit 1hp 110v/50 60 hz
  • Foot Pedal-Single Direction
  • Spare Safety Shaft Coupling
  • 1 25ft Shaft and Casing Rubber Coated (Dry)
  • 6 Spiral Brushes (Steel)
  • -or-
  • Expanding Bronze Brush and Spare Refill Set

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete
Kit*
Drive
Unit
Shaft
& Casing
6 Steel
Spiral Brushes
Shaft AdapterExpanding Steel Brush
Inches(mm)
1.250 – 1.499(31.8 – 38.1)WAW-150096109730-9025
(9/16 x 12 Male Thread)
62540-
0125
9893
(1/4 FEM NPT)
2477-
0001
1.500 – 1.749(38.1 – 44.4)62540-
0150
2477-
0006
1.750 – 1.999(44.5 – 50.8)62540-
0175
2492-
0006
2.000 – 2.249(50.8 – 57.1)62540-
0200
2501-0007
2.250 – 2.499(57.2 – 63.5)62540-02553441-
0005
2.500 – 2.749(63.5 – 69.8)62540-
0250
3441-
0010
2.750 – 2.999(69.9 – 76.2)9732-0025
(3/4 x 10 Male Thread)
62540-
0275
9894 (1/4 FEM NPT)3456-
0003
3.000 – 3.249(76.2 – 82.5)62540-
0300
3456-0006
3.250 – 3.449(82.6 – 88.9)WAW-2500963062540-
0325
3470-0004
3.500 – 3.749(88.9 – 95.2)62540-
0350
3470-
0007
3.750 – 3.999(95.3 – 101.6)62540-
0375
3470-
0009
4.000 – 4.250(101.6 – 108.0)62540-
0400
4060-0006
