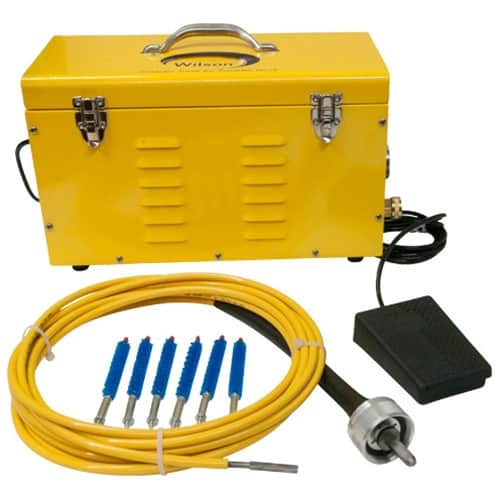

Wils-Away™ 520 Electric Tube Cleaner

SKU: waw-520-5/8
The Wils-Away 520 Electric Tube Cleaning System cleans straight and curved tubes in heat exchangers, condensers, chillers, absorbers, water heaters, coolers, and other small diameter pressure vessels.

Log in to see prices

  • Cleaning Straight and Curved Tubes in Heat Exchangers, Condensers, Chillers, Absorbers, Water Heaters, Coolers, and Other Small Diameter Pressure Vessels
  • 3/8 1 1/2-Inch (9.5 to 38.1mm) Outer Diameter Tubes
  • Removing Light to Medium Soft Deposits
  • Compact Drive Unit – 35 lbs; 10H x 18W x 8 1/2D – (16Kg; 254 x 457 x 216mm)
  • Speed – 1,725 rpm
  • Power – 1/2 HP (WAW-500 Series) 1 HP – (WAW-1000 Series)

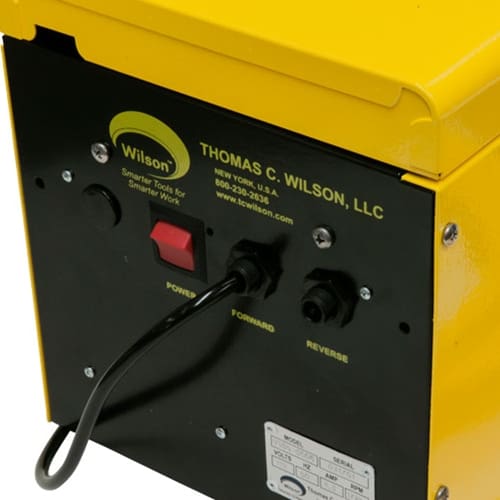

  • Electric Drive Unit

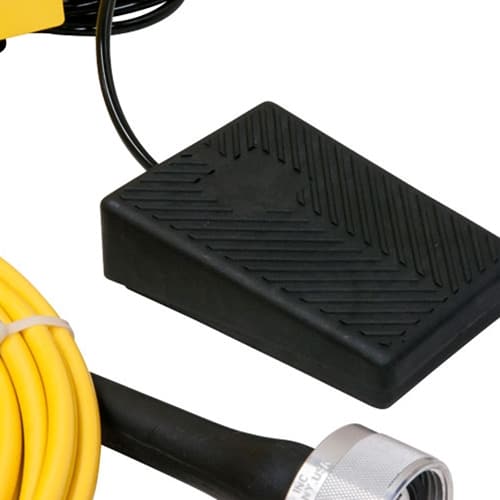

  • Foot Pedal-Single Direction
  • Spare Safety Shaft Coupling

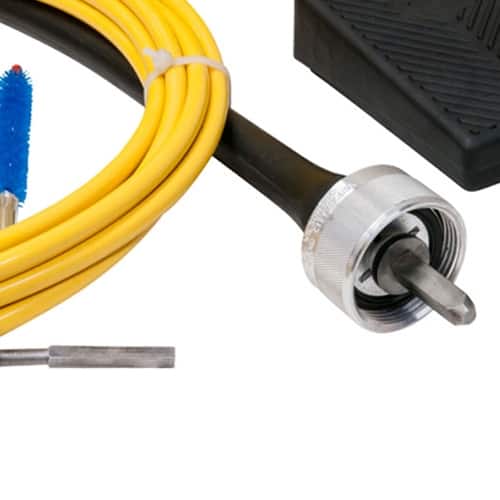

  • 25-Foot Shaft & Casing (7.6M)
  • Set of 6 Nylon Spiral Brushes
  • -or-
  • Expanding Bronze Brush and Spare Refill Set

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete KitDrive UnitFlexible Shaft & Casing6 Nylon Spiral1BrushesExpanding2Bronze Brush
Inches(mm)
.281 – .311(7.1 – 7.9)WAW-520
(Compact Unit)
115V 50/60 Hz		9506000097200015
(8 x 32 Female Thread)		617464025–
.312 – .342(7.9 – 8.7)617464028–
.343 – .374(8.7 – 9.5)617464031–
.375 – .405(9.5 – 10.3)617464034–
.406 – .436(10.3 – 11.1)625014037–
.437 – .499(11.1 – 12.7)97220025
(1/4 x 28 FemaleThread)		625014043–
.500 – .561(12.7 – 14.2)625014050–
.562 – .624(14.2 – 15.8)62501405699003003
.625 – .686(15.9 – 17.4)97240025
(1/4 x 28 Female Thread)		62501406299003006
.687 – .749(17.4 – 19.0)625014068245630023
.750 – .811(19.0 – 20.6)625014075245630033
.812 – .874(20.6 – 22.2)625014081245630043
.875 – .936(22.2 – 23.8)625014087245630063
.937 – .999(23.8 – 25.4)625014093246330043
1.000 – 1.061(25.4 – 26.9)625014100246330053
1.062 – 1.124(26.9 – 28.5)

For other than 115V 50/60Hz units, order WAW-510 (220V 50/60Hz), WAW-530 (115V 50Hz), WAW-540 (220V 60Hz),
WAW-550 (220V 50Hz), or WAW-1100 (220V 50/60Hz).
1. For steel spiral brushes, change the last four digits of the Part No. to “0XXX”, for stainless steel “2XXX”, for brass “3XXX”.
2. For expanding brush with nylon bristles, change the last four digits to “4XXX”, for stainless steel “5XXX”, for steel “0XXX”.
3. These expanding brushes require an adapter (Part No. 9589).
4. These expanding brushes require an adapter (Part No. 9798).
