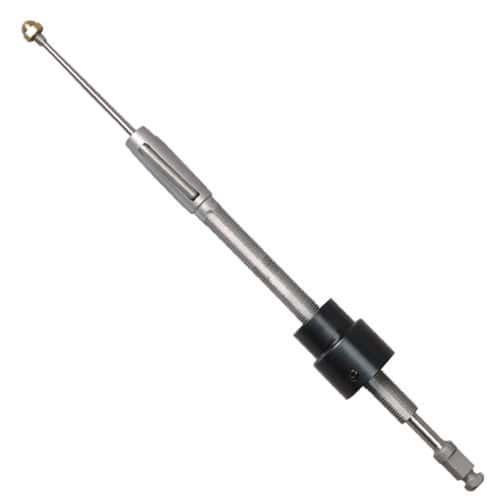

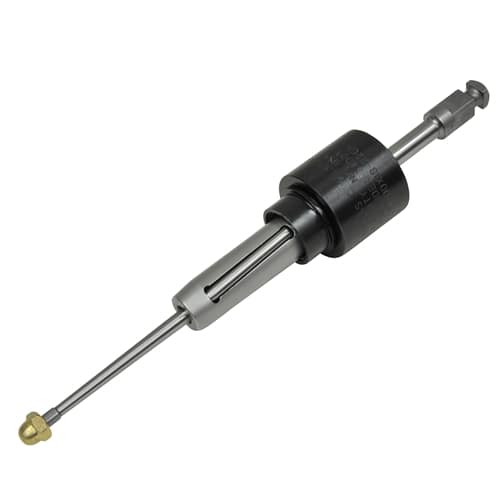

Series 44-C 3-Roll Long Reach Condenser Tube Expander
SKU: N/A

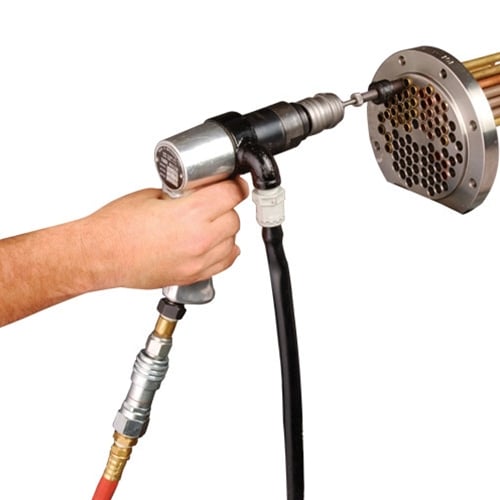

The Series 44-C 3-Roll Long Reach Condenser Tube Expander is an essential tool for expanding tubes in condensers, evaporators, heaters, and coolers. Alongside the Series 41-C and Series 47-C models, it is specially designed for thick and multiple tube sheet applications where step rolling is required. However, this model is for medium tube sheet thicknesses ranging from 1.25″ – 6″.
This expander is unmatched in its use for condensers and heat exchangers in oil refineries, chemical plants, and atomic energy installations. Its high quality and rugged design make it perfect for these demanding environments.
Key features of the series 44-C 3-Roll Long Reach Condenser Tube Expander include:
- Long-reach design is perfect for thick and multiple tube sheet applications.
- Versatile usage for condensers, evaporators, heaters, and coolers.
- Robust construction built to withstand the rigors of industrial use.
- Suitable for use where step rolling is practiced.
Enhance your maintenance operations with the series 44-C 3-Roll Long Reach Condenser Tube Expander, a reliable choice for efficient tube expansion in the most demanding industrial applications. Order yours today.
COMMON APPLICATIONS FOR THE SERIES 44-C 3-ROLL LONG-REACH CONDENSER TUBE EXPANDER

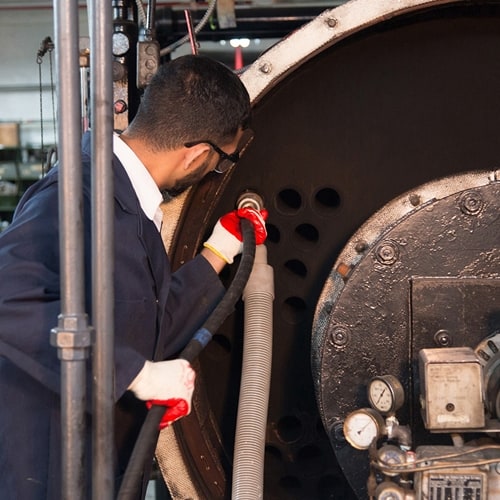

Robustly constructed, the Series 44-C 3-Roll Long Reach Condenser Tube Expander is ideal for use in oil refineries, chemical plants, and atomic energy installations. Use this tool for the following applications:
- Condensers
- Evaporators
- Heaters
- Coolers
KEY FEATURES OF THE SERIES 44-C 3-ROLL LONG-REACH CONDENSER TUBE EXPANDER
- Robust construction built to withstand the rigors of industrial use.
- Long-reach design is perfect for thick and multiple tube sheet applications.
- Suitable for use where step rolling is practiced.
Only logged in customers who have purchased this product may leave a review.
| Tube OD | GA | Range | 44-C Expander | 1-1/2″ (38.1) Roll Length Common Roll Set Part No. |
|---|
| Inches | (mm) | Inches | (mm) | Assembly | Mandrel | Cage |
|---|
| 1/2 | (12.7) | 14 | .320-.370 | (8.1-9.4) | 34143 | 33455 | 39739 | 33371 |
| 15 | .342-.390 | (8.7-9.9) | 34142 | 39740 | 33360 |
| 16-17 | .360-.411 | (9.1-10.4) | 34100 | 33430 | 33240 |
| 18-19 | .392-.447 | (10.0-11.4) | 34101 | 33241 | 33361 |
| 20-22 | .425-.481 | (10.5-12.2) | 34102 | 41867 | 33242 |
| 5/8 | (15.9) | 12 | .392-.447 | (10.0-11.4) | 39369 | 33430 | 33241 |
| 13 | .425-.481 | (10.5-12.2) | 34099 | 41867 | 33242 |
| 14 | .444-.513 | (11.3-13.0) | 41393 | 33243 | 33362 |
| 15-17 | .464-.537 | (11.8-13.6) | 38396 | 38623 | 33375 |
| 18-19 | .497-.571 | (12.6-14.5) | 38392 | 39549 | 33376 |
| 20-22 | .542-.600 | (13.8-15.2) | 39593 | 41548 | 33246 | 33364 |
| 3/4 | (19.1) | 10 | .444-.513 | (11.3-13.0) | 34103 | 41867 | 33243 | 33362 |
| 11 | .482-.550 | (12.2-14.0) | 34104 | 33244 | 33363 |
| 12 | .508-.583 | (12.9-14.8) | 34105 | 33432 | 33245 |
| 13-14 | .542-.625 | (13.8-15.9) | 34106 | 33246 | 33364 |
| 15-17 | .589-.681 | (15.0-17.3) | 34108 | 33433 | 33248 | 33365 |
| 18-22 | .635-.722 | (16.1-18.3) | 34109 | 33434 | 33249 |
| 7/8 | (22.2) | 11 | .589-.681 | (15.0-17.3) | 34108 | 33433 | 33248 |
| 12-13 | .635-.722 | (16.1-18.3) | 34110 | 33434 | 33249 |
| 14-15 | .686-.781 | (17.4-19.8) | 34111 | 33435 | 33251 | 33366 |
| 16-17 | .717-.815 | (18.2-20.7) | 34113 | 33437 | 33253 |

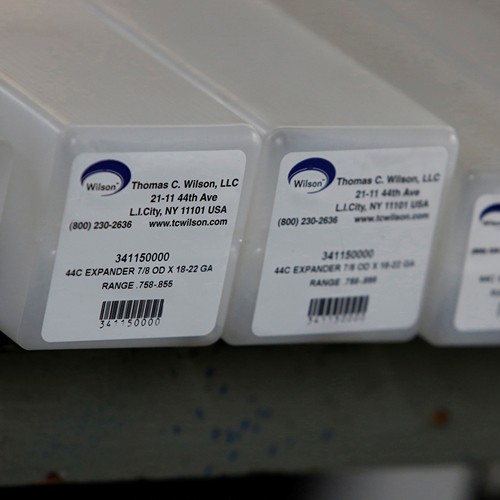

| 18-22 | .758-.855 | (19.3-21.7) | 34115 | 33436 | 33255 | 33367 |
| 1 | (25.4) | 9 | .686-.781 | (17.4-19.8) | 34111 | 33435 | 33251 | 33366 |
| 10 | .701-.800 | (17.8-20.3) | 34112 | 33436 | 33252 |
| 11 | .717-.815 | (18.2-20.7) | 34113 | 33437 | 33253 |
| 12-13 | .758-.855 | (19.3-21.7) | 34115 | 33436 | 33255 | 33367 |
| 14-16 | .794-.919 | (20.2-23.3) | 34118 | 33438 | 33258 | 33368 |
| 17-22 | .856-.980 | (21.7-24.9) | 41399 | 33441 | 33262 | 33369 |
| 1 1/8 | (28.6) | 9-10 | .794-.919 | (20.2-23.3) | 42326 | 33438 | 33258 | 33368 |
| 11-14 | .856-.999 | (21.7-25.4) | 34122 | 33441 | 33262 | 33369 |
| 15-22 | .950-1.106 | (24.1-28.1) | 41405 | 41013 | 33267 | 33370 |
| 1 1/4 | (31.8) | 9-11 | .920-1.076 | (23.4-27.3) | 34125 | 33442 | 33265 |
| 12-13 | .950-1.106 | (24.1-28.1) | 34127 | 33444 | 33267 |
| 14-22 | 1.055-1.235 | (26.8-31.4) | 41407 | 33445 | 33271 | 33372 |
| 1 3/8 | (34.9) | 10-13 | 1.055-1.250 | (26.8-31.8) | 34131 |
| 14-20 | 1.185-1.350 | (30.1-34.3) | 41409 | 33274 | 33373
33374 |
| 1 1/2 | (38.1) | 10-13 | 1.185-1.375 | (30.1-34.9) | 34134 |
| 14-18 | 1.310-1.460 | (33.3-37.1) | 34137 | 33446 | 33277 |
