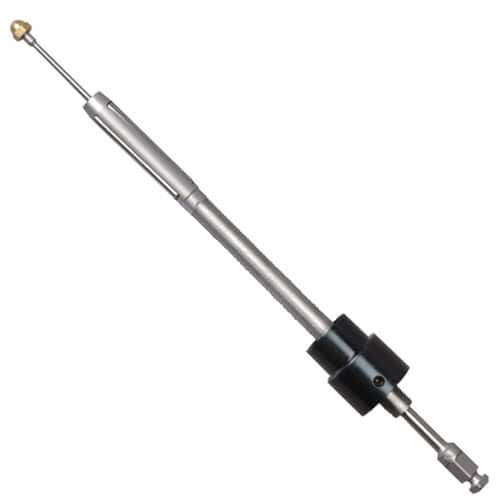

Series 44-D 3-Roll Long Reach Condenser Tube Expander

SKU: N/A

The Series 44-D 3-Roll Long Reach Condenser Tube Expander is a robust tool designed for expanding tubes in condensers, evaporators, heaters, and coolers. This long reach condenser tube expander is great for use with medium tube sheet thicknesses ranging from 2″ to 6.75″ whereas the Series 41-D and Series 47-D  are suitable for lower and higher range thickness requirements.

Ideal for demanding environments such as oil refineries, chemical plants, and atomic energy installations, the Series 44-D 3-Roll Long Reach Condenser Tube Expander comes fully equipped with mandrels, rolls, a cage, and a collar with a 1/16 standard recess.

Key features of the Series 44-D 3-Roll Long Reach Condenser Tube Expander include:

  • Effective for thick and multiple tube sheet applications.
  • Long reach design is ideal for thick and multiple tube sheet applications.
  • Able to handle rugged and demanding environments.
  • Includes mandrels, rolls, a cage, and a 1/16 collar recess.

Built for demanding industrial settings, the Series 44-D 3-Roll Long Reach Condenser Tube Expander provides reliable and efficient tube expansion. Enhance your maintenance process with this durable and versatile tool, designed to handle high-performance tasks with ease. Order yours today.

Log in to see prices

COMMON APPLICATIONS FOR THE SERIES 44-D CONDENSER TUBE EXPANDER

Use this condenser tube expander for tubes with nominal or minimum wall thickness.

  • Condensers
  • Evaporators
  • Heaters
  • Coolers

KEY FEATURES OF THE SERIES 44-D CONDENSER TUBE EXPANDER

  • Versatile tool suitable for multiple applications.
  • Long reach design is ideal for thick and multiple tube sheet applications.
  • Comes with mandrels, rolls, a cage, and a 1/16 collar recess.
  • Able to handle rugged and demanding environments.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

TubeRange44-D Expander2-1/4″ (57.2) Roll Length Common Roll Set Part No
OD
Inches(mm)GAInches(mm)AssemblyMandrelCage
1/2(12.7)18-19.392-.447(10.0-11.4)41414334303937133381
20-22.425-.481(10.5-12.2)414153343133456
5/8(15.9)12.392-.447(10.0-11.4)393703343039371
13.425-.481(10.5-12.2)341523343133456
14.444-.513(11.3-13.0)413943332333382
15-17.464-.537(11.8-13.6)383973862433377
18-19.497-.571(12.6-14.5)383933955433398
20-22.542-.600(13.8-15.2)39597415483332633384
3/4(19.1)10.444-.513(11.3-13.0)34153334313332333382
11.482-.550(12.2-14.0)341543332433383
12.508-.583(12.9-14.8)341553343233325
13-14.542-.625(13.8-15.9)341563332633384
15-17.589-.681(15.0-17.3)34158334333332833385
18-22.635-.722(16.1-18.3)341593343433329
7/8(22.2)11.589-.681(15.0-17.3)341583343333328
12-13.635-.722(16.1-18.3)341603343433329
14-15.686-.781(17.4-19.8)34161334353333133386
16-17.717-.815(18.2-20.7)341633343733333
18-22.758-.855(19.3-21.7)34165334363333533387
1(25.4)9.686-.781(17.4-19.8)34161334353333133386
10.701-.800(17.8-20.3)341623343633332
11.717-.815(18.2-20.7)341633343733333
12-13.758-.855(19.3-21.7)34165334363333533387
14-16.794-.919(20.2-23.3)34168334383333833388
17-22.856-.980(21.7-24.9)41400334413334233389
1 1/8(28.6)9-10.794-.919(20.2-23.3)42327334383333833388
11-14.856-.999(21.7-25.4)34172334413334233389
15-22.950-1.106(24.1-28.1)41406410133334733390
1 1/4(31.8)9-11.920-1.076(23.4-27.3)341753344233345
12-13.950-1.106(24.1-28.1)341773344433347
14-221.055-1.235(26.8-31.4)41408334453335133392
1 3/8(34.9)10-131.055-1.250(26.8-31.8)34181
14-201.185-1.350(30.1-34.3)414103335433393
1 1/2(38.1)10-131.185-1.375(30.1-34.9)34184
14-181.310-1.460(33.3-37.1)34187334463335733394
1 3/4(44.5)8-131.372-1.620(34.8-41.1)343103344933359
14-181.495-1.710(38.0-43.4)414123342533395
2(50.8)7-81.495-1.744(38.0-44.3)34312
9-111.630-1.876(41.4-47.7)343143332233396
12-181.753-1.972(44.5-50.1)343163345233183
2 1/4(57.2)10-181.926-2.213(48.9-56.2)343173342733397
2 1/2(63.5)10-182.176-2.462(55.3-62.5)343183345333428
