- A = 1/2 (12.7mm) to 1 1/2-Inch (38.1mm) Tube Outer Diameter
- B = 9 (9.8mm) to 22 (.7mm) Gauge
- C = 41-C – 1/2 (12.7mm) to 1 1/2-Inch (38.1mm) Tubesheet 44-C – 1 1/4 (31.8mm) to 6-Inch (152.4mm) Tubesheet 47-C – 1 1/4 (31.8mm) to 12-Inch (304.8mm) Tubesheet
Home Products Tube Installation Tube Expanders 3-Roll Long Reach Condenser Tube Expander (Series 47-C)

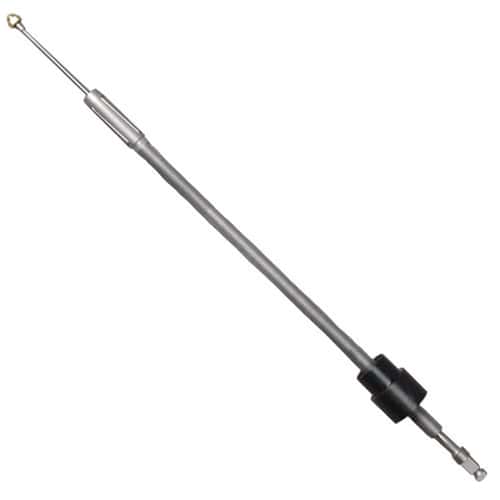

3-Roll Long Reach Condenser Tube Expander (Series 47-C)

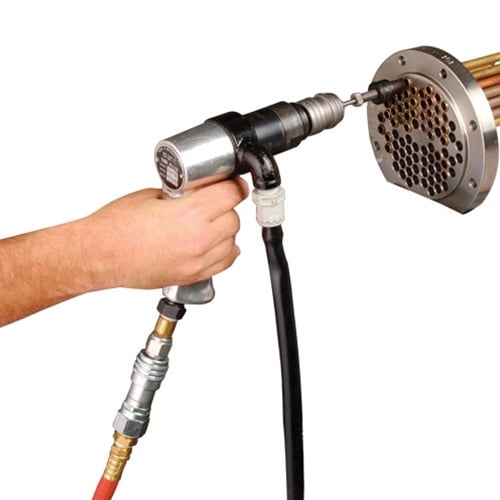

The Model 41-C, 44-C, and 47-C Expanders are suitable for expanding tubes in condensers and/or evaporators, heaters or coolers. The long-reach 41-C, 44-C, and 47-C Expanders are particularly suitable for thick and multiple tubesheet applications where step rolling is practiced. They are unsurpassed for use on condensers and heat exchangers of oil refineries, chemical plants, atomic energy installations, and others.47-C and 47-D Expanders are similar in design to the Models 41 and 44 previously described. However, the threaded shanks are extra-long and suitable for the unusual conditions of extra-thick or widely spaced multiple tubesheets.
Only logged in customers who have purchased this product may leave a review.
Tube OD | GA | Range | 47-C Expander | 1-1/2″ (38.1) Roll Length Common Roll Set Part No. | ||||
---|---|---|---|---|---|---|---|---|
Inches | (mm) | Inches | (mm) | Assembly | Mandrel | Cage | ||
1/2 | (12.7) | 14 | .320-.370 | (8.1-9.4) | – | – | – | 333710000 |
15 | .342-.390 | (8.7-9.9) | – | – | – | 333600000 | ||
16-17 | .360-.411 | (9.1-10.4) | – | – | – | |||
18-19 | .392-.447 | (10.0-11.4) | 415970000 | 385670000 | 385660000 | 333610000 | ||
20-22 | .425-.481 | (10.5-12.2) | 415980000 | 418680000 | 385680000 | |||
5/8 | (15.9) | 12 | .392-.447 | (10.0-11.4) | 394450000 | 385670000 | 385660000 | |
13 | .425-.481 | (10.5-12.2) | 385540000 | 418680000 | 385680000 | |||
14 | .444-.513 | (11.3-13.0) | 413970000 | 385690000 | 333620000 | |||
15-17 | .464-.537 | (11.8-13.6) | 394470000 | 394480000 | 333750000 | |||
18-19 | .497-.571 | (12.6-14.5) | 394490000 | 394500000 | 333760000 | |||
20-22 | .542-.600 | (13.8-15.2) | 396070000 | 415500000 | 385710000 | 333640000 | ||
3/4 | (19.1) | 10 | .444-.513 | (11.3-13.0) | 385550000 | 418680000 | 385690000 | 333620000 |
11 | .482-.550 | (12.2-14.0) | 385750000 | 385760000 | 333630000 | |||
12 | .508-.583 | (12.9-14.8) | 385560000 | 339320000 | 385700000 | |||
13-14 | .542-.625 | (13.8-15.9) | 385570000 | 385710000 | 333640000 | |||
15-17 | .589-.681 | (15.0-17.3) | 385790000 | 339330000 | 385800000 | 333650000 | ||
18-22 | .635-.722 | (16.1-18.3) | 394530000 | 339340000 | 394540000 | |||
7/8 | (22.2) | 11 | .589-.681 | (15.0-17.3) | 385790000 | 339330000 | 385800000 | |
12-13 | .635-.722 | (16.1-18.3) | 394560000 | 339340000 | 394540000 | |||
14-15 | .686-.781 | (17.4-19.8) | 394570000 | 339350000 | 394580000 | 333660000 | ||
16-17 | .717-.815 | (18.2-20.7) | 394610000 | 339370000 | 394620000 | |||
18-22 | .758-.855 | (19.3-21.7) | 394650000 | 339360000 | 394660000 | 333670000 | ||
1 | (25.4) | 9 | .686-.781 | (17.4-19.8) | 394570000 | 339350000 | 394580000 | 333660000 |
10 | .701-.800 | (17.8-20.3) | 394590000 | 339360000 | 394600000 | |||
11 | .717-.815 | (18.2-20.7) | 394610000 | 339370000 | 394620000 | |||
12-13 | .758-.855 | (19.3-21.7) | 394650000 | 339360000 | 394660000 | 333670000 | ||
14-16 | .794-.919 | (20.2-23.3) | 394690000 | 339380000 | 394700000 | 333680000 | ||
17-22 | .856-.980 | (21.7-24.9) | 414030000 | 339410000 | 386110000 | 333690000 | ||
1 1/8 | (28.6) | 9100000 | .794-.919 | (20.2-23.3) | – | – | – | 333680000 |
11-14 | .856-.999 | (21.7-25.4) | – | – | – | 333690000 | ||
15-22 | .950-1.106 | (24.1-28.1) | – | – | – | 333700000 | ||
1 1/4 | (31.8) | 9110000 | .920-1.076 | (23.4-27.3) | 394810000 | 339420000 | 394820000 | |
12-13 | .950-1.106 | (24.1-28.1) | 394850000 | 339440000 | 394860000 | |||
14-22 | 1.055-1.235 | (26.8-31.4) | 418640000 | 339450000 | 394920000 | 333720000 | ||
1 3/8 | (34.9) | 10-13 | 1.055-1.250 | (26.8-31.8) | – | – | – | |
14-20 | 1.185-1.350 | (30.1-34.3) | – | – | – | 333730000 33374 | ||
1 1/2 | (38.1) | 10-13 | 1.185-1.375 | (30.1-34.9) | 394970000 | 339450000 | 394980000 | |
14-18 | 1.310-1.460 | (33.3-37.1) | 395030000 | 339460000 | 395040000 |
