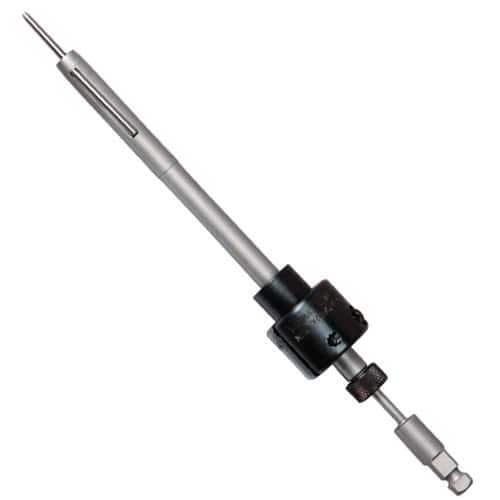

Series 44-A 3-Roll Small Condenser Tube Expander

SKU: N/A

The Series 44-A 3-Roll Small Condenser Tube Expander is primarily designed for tiny tubes typically found in lubricating oil coolers and similar heat exchangers. Similar to the Series 41-A , the Series 44-A is ideal for use with larger OD tubes (0.375″).

The assembly includes a mandrel, rolls, cage, and collar, with options for flush (0.25″ size) or 1/16 recess (0.375″ size). This small condenser tube expander is suitable for expanding tiny tubes in lubricating oil coolers and similar heat exchangers.

Built with a focus on durability and efficiency, these expanders offer a number of key features:

  • Adjustable ball bearing collar for various tube sheet thicknesses.
  • Complete assembly with mandrel, rolls, cage, and collar.
  • Flush or 1/16 recess options for different tube sizes.
  • Precision-engineered for reliability and durability.

Optimize your tube expansion processes with the Series 44-A 3-Roll Small Condenser Tube Expander, designed for efficient and precise performance in industrial applications. Order yours today.

Log in to see prices

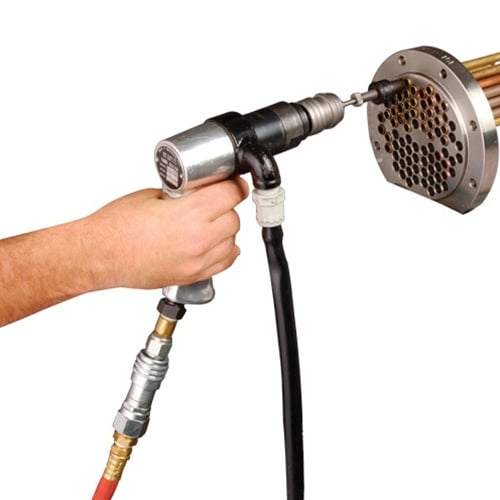

COMMON APPLICATIONS FOR THE SERIES 44-A SMALL CONDENSER TUBE EXPANDER

  • Lubricating Oil Coolers
  • Heat Exchangers
  • Other Applications with Small Tubes

KEY FEATURES OF THE SERIES 44-A SMALL CONDENSER TUBE EXPANDER

  • Suitable for use in various industrial settings.
  • Reliable performance in demanding environments.
  • Adjustable ball bearing collar for various tube sheet thicknesses.
  • Complete assembly with mandrel, rolls, cage, and collar.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube44-A Expander 1-3 1/2-Inch Reach1-Inch (25.4) Roll Length Common Roll Set – Part No.
ODGARangeAssemblyMandrelCage
Inches(mm)Inches(mm)Part No.Part No.Part No.
3/8(9.5)15.225-.266(5.7-6.8)339553396534373
16.237-.278(6.0-7.1)33956339543396634372
17.253-.294(6.4-7.5)339573396734399
18.269-.310(6.8-7.9)339583396834371
19.283-.324(7.2-8.2)33959339533396934415
20.297-.338(7.5-8.6)3396033970
21.303-.344(7.7-8.7)339613397134370
22.311-.352(7.9-8.9)339623394933972
23.317-.358(8.1-9.1)339633397334414
24.323-.364(8.2-9.2)33964339523397434369
