Home Products Tube Installation Tube Expanders 4 And 5 Roll Condenser Expanders (Series 72-C)
4 And 5 Roll Condenser Expanders (Series 72-C)
SKU: N/A

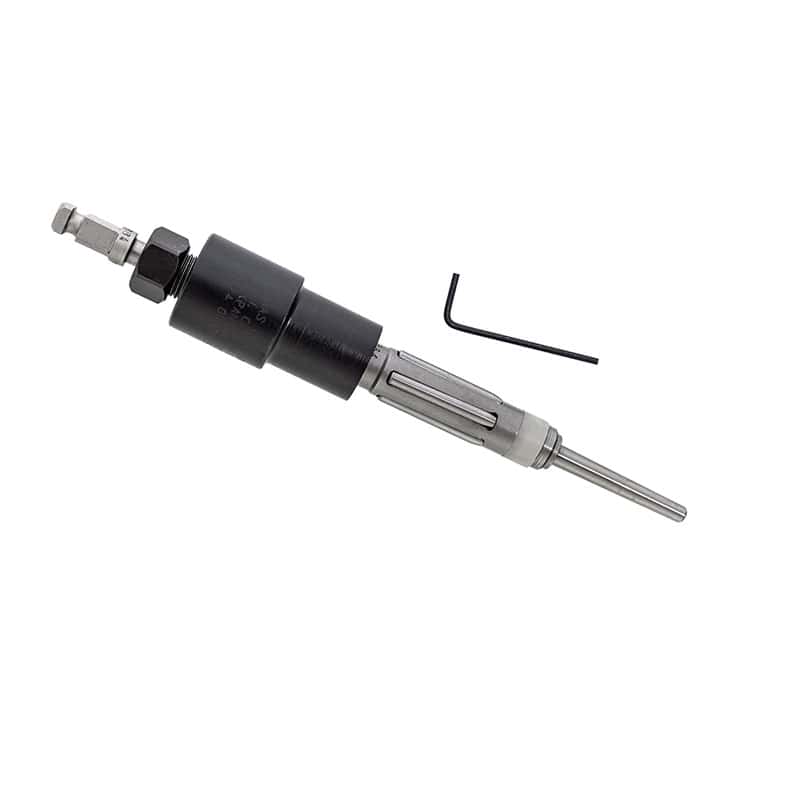

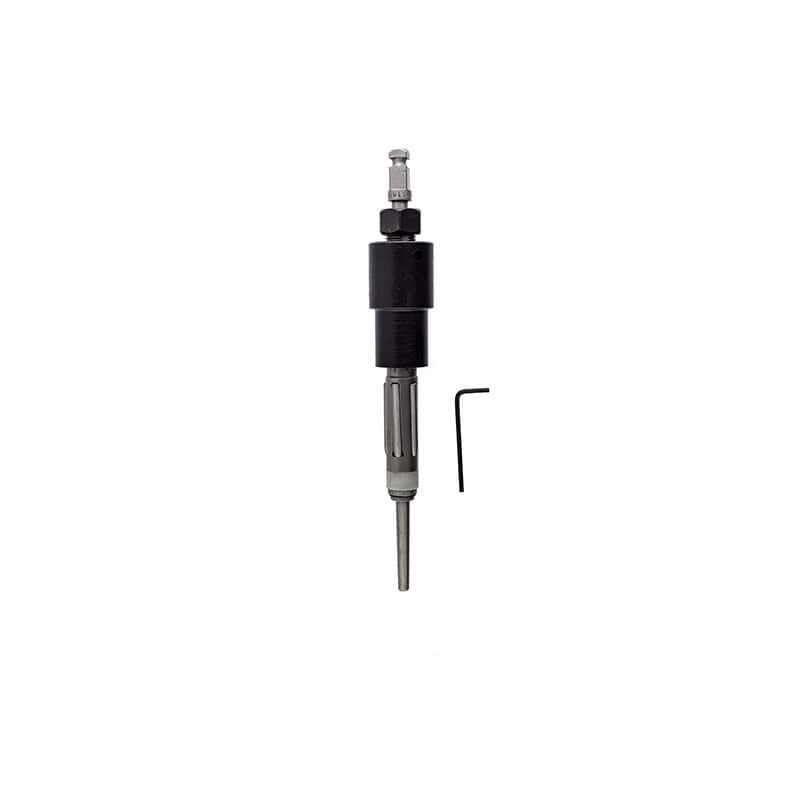

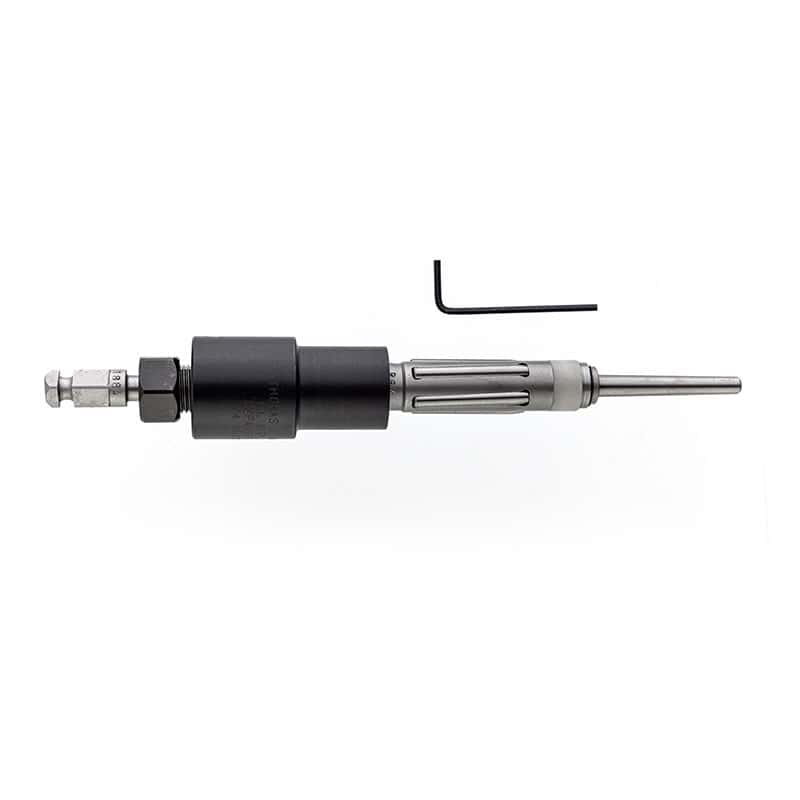

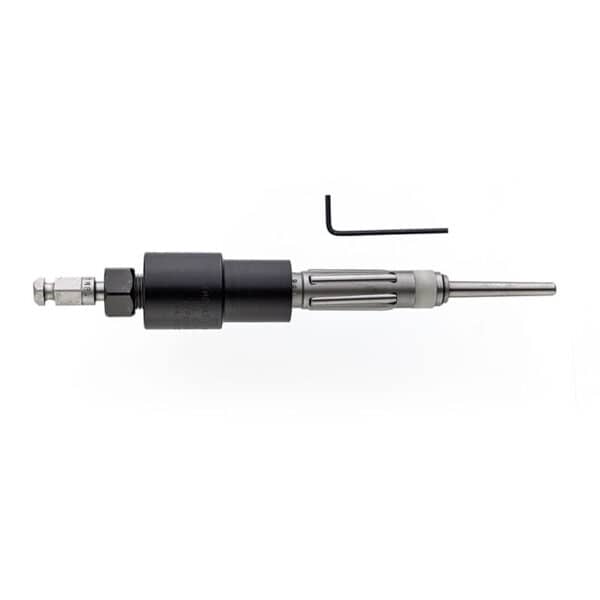

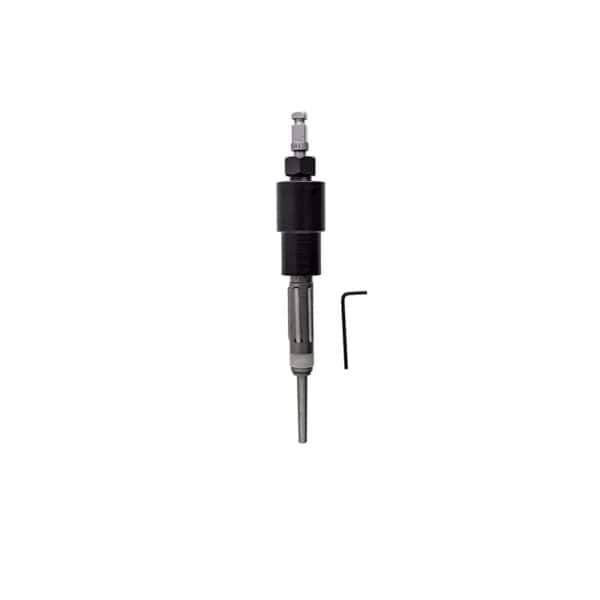

These expanders are used on light Gauge tubes of stainless steel, titanium, and materials of similar hardness. 5-Rolls with light wall tubes can prevent triangulation of the tube to the tube hole. Wilson Thin Guage collars also offer a large advantage for projection of tube. All assemblies come complete with mandrels, rolls, cage, and collars with a 1/16-Inch standard recess.
Only logged in customers who have purchased this product may leave a review.
Tube | Range | 72-C Expander 1/2-1 1/2-Inch Reach | 73-C Expander 3/4-5 1/2-Inch Reach | 1 1/2-Inch (38.1) Roll LengthRoll Set | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
OD | Wall | Assembly | Mandrel | Cage | Assembly | Mandrel | Cage | ||||
Inches | (mm) | GA | Inches | (mm) | Part No. | Part No. | Part No. | Part No. | Part No. | Part No. | |
1/2 | (12.7) | 18-19 | .387-.449 | (9.8-11.4) | 415520000 | 418790000 | 415110000 | – | – | – | 333614 |
20-25 | .425-.480 | (10.5-12.2) | 415530000 | 418800000 | 415120000 | – | – | – | |||
5/8 | (15.9) | 18-19 | .515-.570 | (13.1-14.5) | 415540000 | 418810000 | 415130000 | 419360000 | 420640000 | 420000000 | 333624 |
20-25 | .537-.596 | (13.6-15.1) | 415550000 | 415140000 | 419370000 | 420010000 | 333754 | ||||
3/4 | (19.1) | 13-14 | .537-.596 | (13.6-15.1) | 415560000 | 423310000 | |||||
16-17 | .605-.676 | (15.2-17.2) | 415570000 | 418820000 | 415150000 | 419380000 | 420660000 | 420020000 | 333635 | ||
18-19 | .635-.715 | (16.1-18.2) | 415580000 | 418330000 | 415160000 | 419390000 | 420670000 | 420030000 | |||
20-25 | .665-.750 | (16.9-19.1) | 415590000 | 418840000 | 415170000 | 419400000 | 420040000 | 333645 | |||
7/8 | (22.2) | 16-17 | .717-.795 | (18.2-20.2) | 415600000 | 415180000 | 419410000 | 420050000 | 333655 | ||
18-19 | .758-.859 | (19.3-21.9) | 415610000 | 418850000 | 415190000 | 419420000 | 420690000 | 420060000 | |||
20-25 | .790-.885 | (20.1-22.5) | 415620000 | 415200000 | 419430000 | 420070000 | 333665 | ||||
1 | (25.4) | 13-15 | .790-.885 | (20.1-22.5) | 415630000 | 423320000 | |||||
16-17 | .850-.922 | (21.6-23.4) | 415640000 | 418860000 | 415210000 | 419440000 | 420700000 | 420080000 | |||
18-19 | .885-.950 | (22.5-24.1) | 415650000 | 418870000 | 415220000 | 419450000 | 420710000 | 420090000 | |||
20-25 | .915-1.015 | (23.2-25.8) | 415660000 | 418880000 | 415230000 | 423030000 | 423070000 | 333675 | |||
1 1/8 | (28.6) | 18-19 | 1.010-1.075 | (25.7-27.3) | 415670000 | 415240000 | 419460000 | 420100000 | 333695 | ||
20-25 | 1.040-1.125 | (26.4-28.6) | 415680000 | 418890000 | 415280000 | 419470000 | 420720000 | 420110000 | |||
1 1/4 | (31.8) | 18-19 | 1.135-1.200 | (28.8-30.5) | 415690000 | 418900000 | 415300000 | – | 420120000 | 333705 | |
20-25 | 1.165-1.250 | (29.6-31.8) | 415700000 | 418910000 | 415320000 | 419490000 | 420730000 | 420130000 | |||
1 1/2 | (38.1) | 18-19 | 1.385-1.450 | (35.2-36.8) | 415710000 | 418920000 | 415330000 | – | 420740000 | 420140000 | 333725 |
20-25 | 1.415-1.500 | (35.9-38.1) | 415720000 | 422970000 | 415340000 | – | 420750000 | 420150000 |
